Detailed Product Description

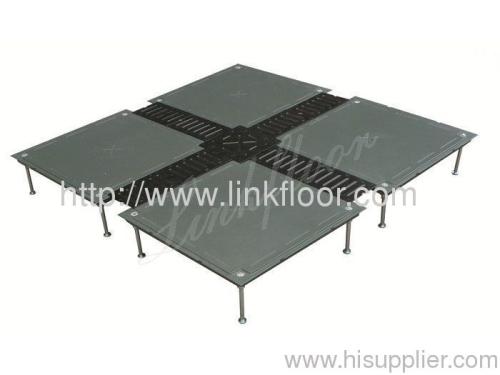

Network Raised Floor with Flat Covers is composed of Unipanel, Base Connector, Central Cap , Flank Cap and Pedestal. There is an installation area surrounding the panel with the width of 14mm and a height of 3.5mm lower than the raised floors systems surface. Each of the access raised flooring has four screw bars. The base connector is used to connect the area between access floors laid out, central cap and flank cap. The metal slots can be installed under the caps. Each of the corners is supported independently and all caps are paved evenly. Wires can be pulled out or socket can be installed at any point around the panel.

Module Set size: 600mm×600mm=1 UniPanel + 1 Base Connector + 1 Central Cap + 4 Flank Caps

System height: 40mm-150mm

Main Components

Unipanel

Size: 500mm×500mm

Thickness: 25mm

Top and bottom plate of panel: Steel, corrosion protection with powder coating

Panel body encased with light-weighted cement.

Edges: 3.5mm recession, 14mm wide at panel borders.

Pedestals: Galvanized steel, fixed at four corners. Assembled to system's required height

Base connector: Galvanized steel. Used to connect UniPanel's pedestal, and automatically form the standard-distance cable trenches

Central cap: Size: 196mm×196mm

Flank cap: 200mm*126mm

2mm thick steel, corrosion protection by powder coating or electro-deposition. Re-enforced ribs

Caps are aligned to create a grid format and to hide exposed wires
