Rivated Hollow Steel Raised Floor with Slots-508
Place of Origin: |
Jiangsu, China (Mainland) |
Product Detail
Detailed Product Description
Cross Head Pedestal features three key pieces: an aluminum cross head, a solid steel rod, an
Detailed Product Description

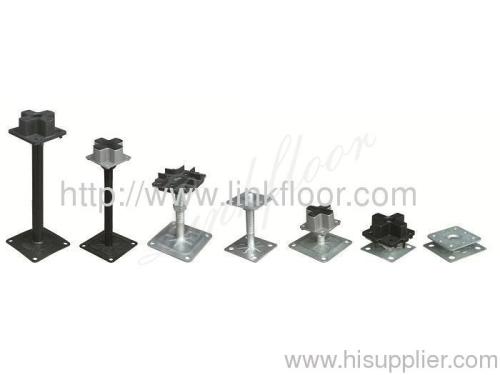

Cross Head Pedestal features three key pieces: an aluminum cross head, a solid steel rod, and a base plate. The cross head is fixed to a M18 or a M20 solid steel rod which is welded to the base plate, which is normally 100mm square. There are two options for securing the base plate to the sub-floor. One can either screw bolts into the sub-floor in the corner-holes provided or use adhesive. For greater height you can use a steel column in place of the solid steel rod. This allows for the option of raising your floor system to a higher than standard level. The steel column comes in a range of thickness and height (Thickness:1.2mm-2.5mm, Diameter 22mm-50mm) and provides greater load bearing capacity.
Finished Floor Height: 80mm - 1500mm. Each access floor pedestal allows for approximately 15mm-25mm height adjustment.
Floor Pedestals Coating: Galvanized or an Electrophoretic coating
PERFORMANCE SELECTION CHART
Linkfloor Bare Type Steel Cement Filled Panel (SCP-CL-PDT) |
Item | FFH(mm) | Horizntal Load (N) | Vertical Load (18KN) | Pedestal head | Screw Rod | Pedestal Tube | Pedestal Base |
CL-PDT 80~150 | 80~150 +/-15 | 500 | Did Not Collapse | 70x70mmCross Aluminum | M18 Or M20 | / | 100x100mm |
CL-PDT 200~500 | 200~500 +/-25 | 500 | Did Not Collapse | 70x70mmCross Aluminum | M18 Or M20 | Dia. 22 or 25mm | 100x100mm |
CL-PDT 550~800 | 550~800 +/-25 | 500 | Did Not Collapse | 70x70mmCross Aluminum | M18 Or M20 | Dia. 32mm | 100x100mm |
CL-PDT 850~1500 | 850~1500 +/-25 | 500 | Did Not Collapse | 70x70mmCross Aluminum | M18 Or M20 | Dia. 38mm | 120x120mm |
